Are you on the hunt for the perfect silicone formulation to elevate your next product? At Silfusion, we understand that the material you choose—whether Liquid Silicone Rubber (LSR), High‑Consistency Rubber (HCR), or Room‑Temperature Vulcanizing (RTV) silicone—will dictate your design’s performance, manufacturability, compliance, and cost. In this comprehensive guide, we’ll walk you through each silicone category’s unique properties, processing demands, and recommended applications, so you can confidently align your product requirements with the right silicone technology.
Understanding Silicone Basics
All silicones share a silicon‑oxygen (Si–O) backbone, but differences in viscosity, curing chemistry, and curing conditions result in three primary families:
- Liquid Silicone Rubber (LSR) – A two‑component, platinum‑cured system, LSR flows like a liquid at room temperature. After precise mixing in metered machinery, it is injected into heated molds to produce highly intricate parts with exceptional consistency.
- High‑Consistency Rubber (HCR) – Delivered as a solid or gum‑like sheet, HCR is compounded, calendared, or extruded before molding. Curing takes place under heat and pressure in compression or transfer molds.
- Room‑Temperature Vulcanizing (RTV) Silicone – Available as a one‑ or two‑component system, RTV cures at ambient temperatures—either via atmospheric moisture or a chemical catalyst. It’s typically applied by brushing, pouring, or dispensing as an adhesive or sealant.
Each of these silicone technologies offers its own balance of fluidity, strength, speed to cure, and ease of processing. Let’s examine them one by one.

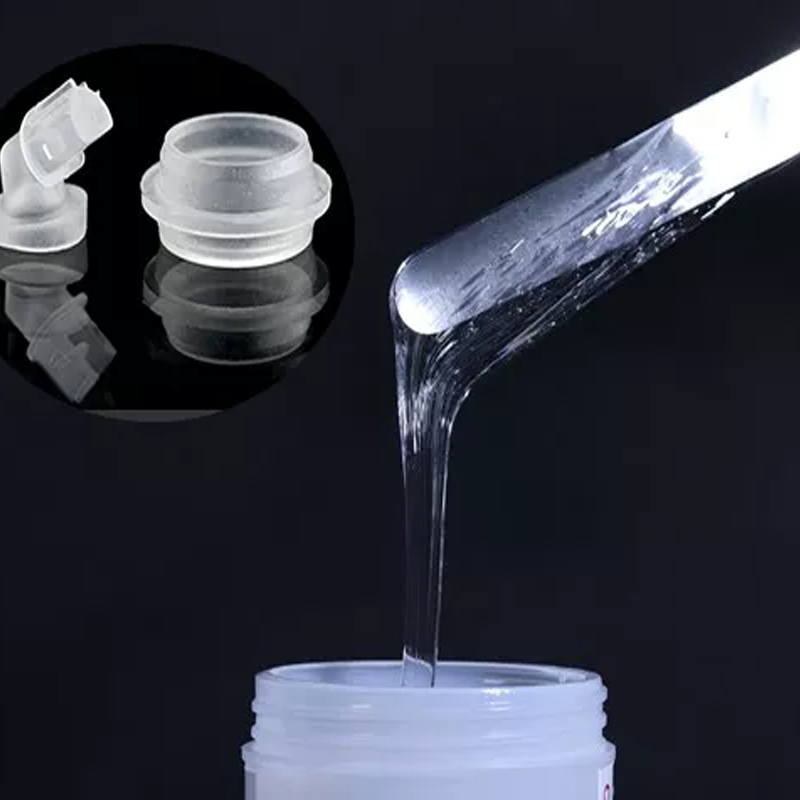

Liquid Silicone Rubber (LSR): Precision and Automation
Key Advantages
- Flowability & Shot‑to‑Shot Consistency
LSR’s liquid nature allows it to fill thin‑wall sections—down to 0.2 mm—and replicate complex undercuts. Automated metering guarantees exact base‑to‑catalyst ratios, yielding highly reproducible parts with minimal waste. - Rapid Cure Cycles
Typical injection‑molding cycle times range from 10 to 60 seconds, supporting high‑volume production. Fast thermal curing also reduces work‑in‑process inventory. - Medical and Food‑Grade Compliance
Platinum‑cured LSR grades readily meet ISO 10993 for biocompatibility and FDA 21 CFR 177.2600 for food contact, making them indispensable for catheter hubs, infant‑care teats, and kitchenware seals.
Processing Considerations
- Equipment Investment
LSR molding requires dedicated injection presses with heated barrels, cold‑runner manifolds, and high‑precision shot‑dosing pumps. Silfusion maintains ISO 7‑certified molding cells to meet stringent cleanliness requirements. - Tooling Design
Cold‑runner dies and uniform thermal control are essential. Our in‑house tool shop designs multi‑cavity molds that optimize cycle times and minimize material waste.
Ideal Use Cases
- Medical Devices: Seals, diaphragms, valve membranes, and baby‑care products.
- Electronics & Automotive: High‑temperature seals, connectors, and vibration‑damping mounts.
- Consumer Goods: Overmolds on toothbrushes, wearables, and kitchen tools demanding soft‑touch surfaces.

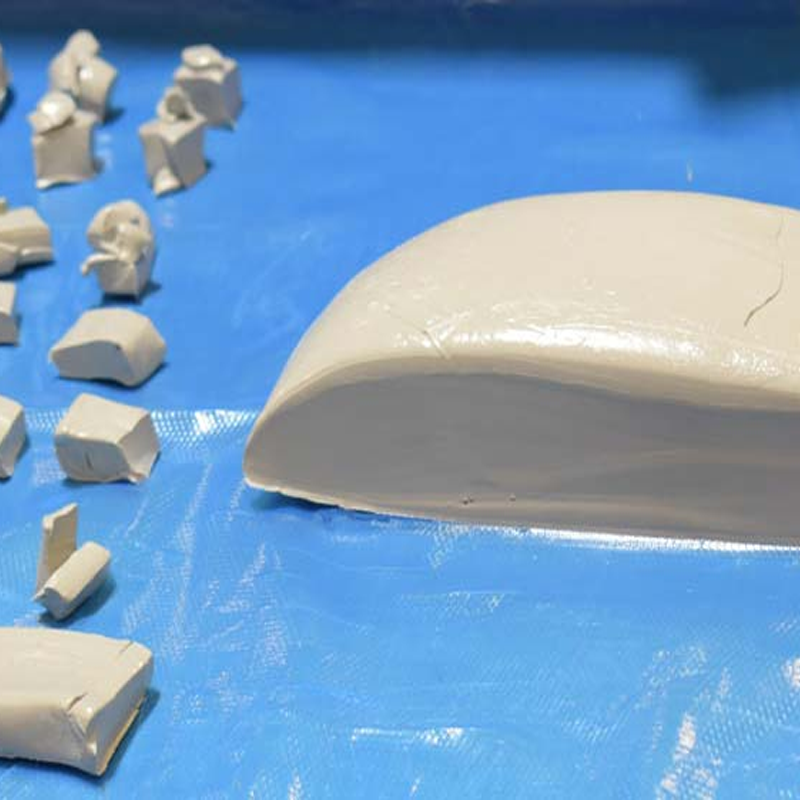

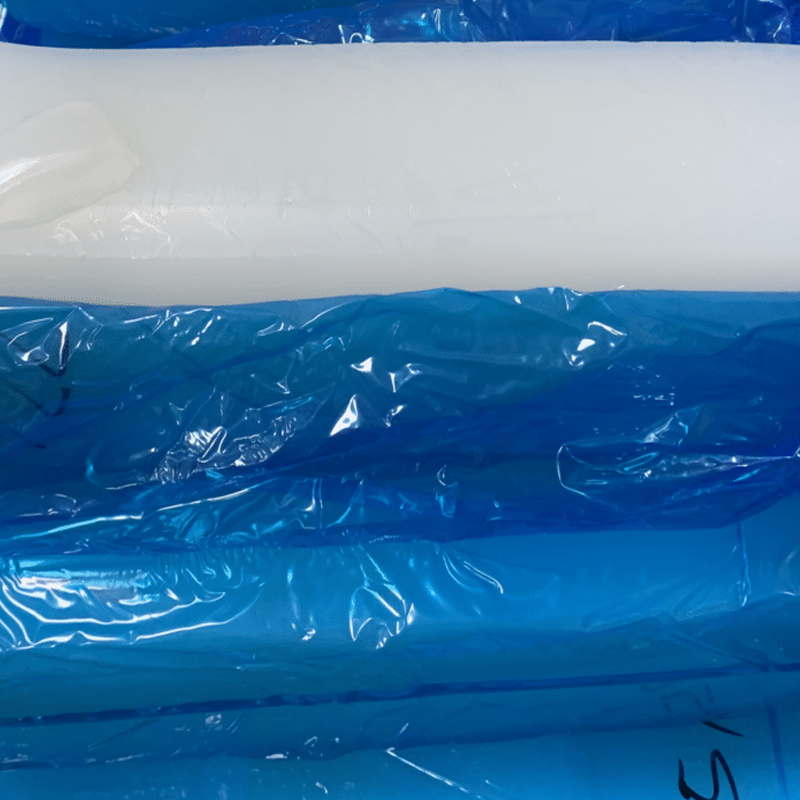

High‑Consistency Rubber (HCR): Durability at Scale
Key Advantages
- Robust Mechanical Properties
HCR compounds reinforced with fillers (silica, carbon black) exhibit excellent tear strength (up to 30 kN/m) and low compression set—ideal for heavy‑duty seals and gaskets. - Wide Temperature Range
Properly formulated HCR can reliably operate from −60 °C all the way to +250 °C, making it suitable for industrial bellows and large‑format vibration mounts. - Batch‑Processing Flexibility
HCR is processed in batches on two‑roll mills or internal mixers, allowing customized compounding of pigments, flame retardants, or special additives.
Processing Considerations
- Longer Cure Cycles
Compression or transfer molding cycles typically last 3 to 15 minutes, depending on part geometry and wall thickness. - Higher Scrap Rates
Manual handling and slicing of sheet stock generate more trim waste, especially on smaller production runs.
Ideal Use Cases
- Industrial Seals & Gaskets: Hydraulic cylinder seals, pneumatic system O‑rings, and oil‑resistant gaskets for heavy machinery.
- Large‑Format Elastomeric Components: Bellows, expansion joints, and vibration isolators that exceed the shot capacity of LSR presses.
- Heat‑Resistant Assemblies: Components subjected to continuous high‑temperature exposure in oil & gas or power generation equipment.

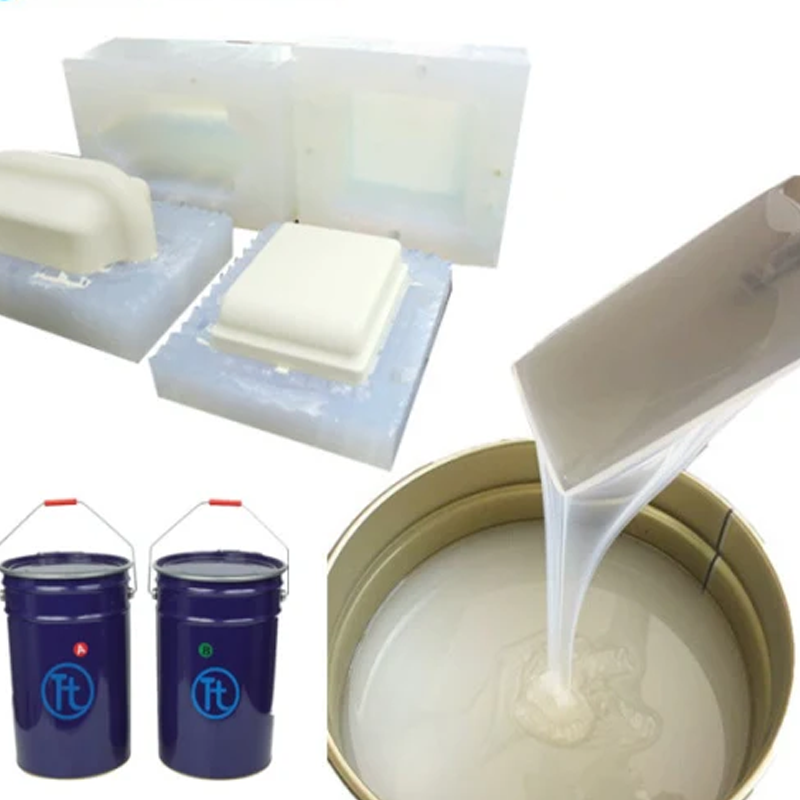

Room‑Temperature Vulcanizing Silicone (RTV): Fast and Flexible
Key Advantages
- Ambient Cure
One‑component RTVs cure to tack‑free in minutes and fully in 24–72 hours, making them ideal for onsite sealing and repair operations. - Exceptional Adhesion
RTVs bond strongly to metal, glass, plastics, and cured silicone, often eliminating the need for primers or mechanical fastening. - Gap‑ Filling & Weather Resistance
With high elasticity and UV stability, RTV silicones serve as reliable weather seals, coatings, and encapsulants.
Processing Considerations
- Lower Mechanical Strength
RTVs typically exhibit tensile strengths of 5–10 MPa, so they are not suited for structural load‑bearing parts. - Longer Full‑Cure Times
The absence of heat curing means production lead times are extended—requiring generous cure allowances in project scheduling. - Surface Finish Control
Achieving precise bead shape or film thickness may require masking or specialized tooling.
Ideal Use Cases
- Adhesives & Sealants: Window glazing, instrument panels, and potting electronics.
- Protective Coatings: Dielectric conformal coatings for circuit boards and sensor housings.
- Rapid Prototyping & Low‑Volume Runs: Shims, mold repairs, and functional prototypes without the need for custom tooling.
Comparing LSR, HCR, and RTV: Making the Right Choice
| Criterion | LSR | HCR | RTV |
|---|---|---|---|
| Annual Volume | > 10,000 parts | 1,000 – 50,000 parts | < 5,000 parts |
| Part Complexity | Very high (0.2 mm walls) | Moderate | Low–moderate |
| Tooling Investment | High | Moderate | Low |
| Mechanical Properties | Excellent | Excellent | Moderate |
| Cure Speed | Seconds–minutes | Minutes | Hours–days |
| Cleanroom Compatibility | Easy (ISO 7+) | Challenging | Easy |
| Thermal Resistance | – 60 °C to 200 °C | – 60 °C to 250 °C | – 60 °C to 180 °C |
| Waste & Scrap | Very low | Higher | Low |
At Silfusion, we house LSR presses, HCR molding lines, and RTV dispensing stations—empowering you to pilot samples and scale seamlessly without changing suppliers.
Best Practices for Seamless Design‑to‑Production
- Early Material Consultation: Engage our materials team to validate target durometer, chemical resistance, and regulatory compliance.
- Prototyping and Testing: Use small‑batch LSR or RTV runs to confirm form, fit, and functionality before full‑scale tooling.
- Design for Manufacturability (DFM): Optimize wall thickness, draft angles, and part geometry for your chosen silicone type to avoid flow hesitations or air traps.
- Process Validation: Conduct thoroughly documented process qualification runs (IQ/OQ/PQ) for medical and food‑grade applications.
- Life‑Cycle Cost Analysis: Factor in material cost, cycle time, scrap rate, and inspection overhead when comparing total cost of ownership.
