Food Grade Silicone Umbrella Valve One-Way Check Valve Suppliers

Overview

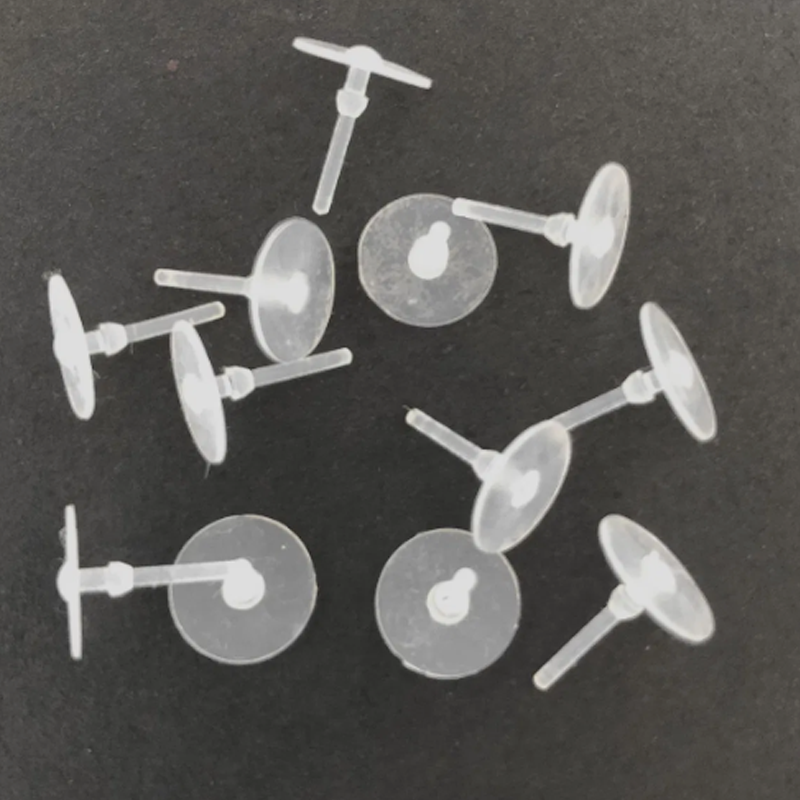

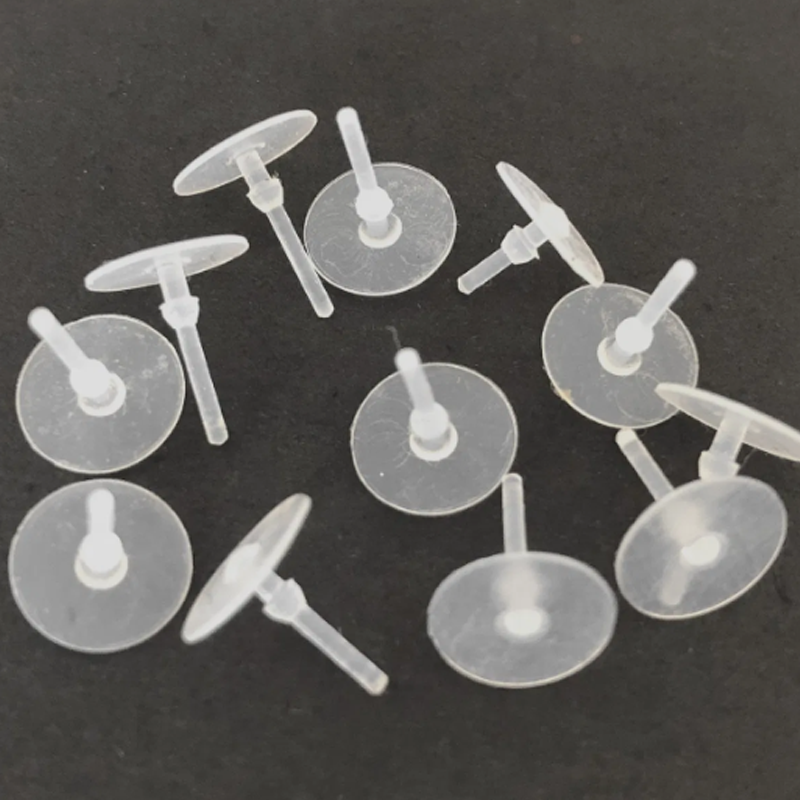

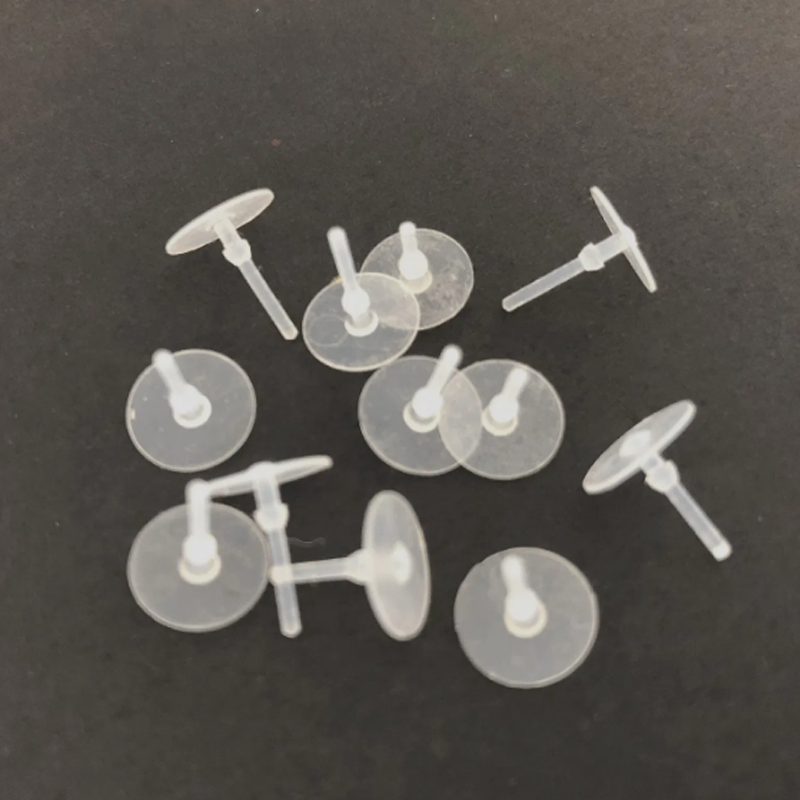

Our Food Grade Silicone Umbrella Valve is a precision one-way check valve designed for reliable venting and pressure equalization in food and liquid packaging. Crafted from certified FDA/LFGB silicone via advanced LSR injection molding, its flexible umbrella design allows controlled gas release while forming a leak-proof seal against backflow and contaminants. We provide full OEM services for custom sizing and performance specifications.

Features

Production Process

• Material Preparation: Premium, platinum-cured Liquid Silicone Rubber (LSR) compliant with FDA and LFGB standards is selected and prepared. Material batches are certified for food contact safety.

• Precision Mold Fabrication: Multi-cavity molds are engineered and manufactured. The core and cavity for the critical umbrella membrane are machined with CNC and finished using Mirror EDM to achieve an optical-quality, flawless sealing surface.

• LSR Injection Molding: The LSR is injected into the temperature-controlled molds. This high-precision process forms the complete valve—including the thin, flexible umbrella and the stem—in a single, automated cycle, ensuring consistency and no flash.

• Demolding and Post-Curing: Cured valves are automatically ejected. They undergo a controlled post-curing cycle to stabilize the silicone’s physical properties and ensure long-term performance.

• Trimming and Deflashing: Any minuscule parting line excess is removed via cryogenic deflashing, guaranteeing clean edges that do not interfere with the valve’s sealing function.

• 100% Functional Quality Control: Every valve is subjected to an automated pressure decay test to verify its sealing integrity at the specified cracking pressure. Statistical samples from each batch are tested for precise airflow rate.

• Final Inspection and Packaging: A final visual and dimensional inspection is conducted. Valves are cleaned and packaged in dust-free bags or according to custom client specifications.

Why Partner with Us for Your Manufacturing Needs?

1. Expertise in Silicone Valve Dynamics: With specialized knowledge in fluid mechanics and LSR processing, we engineer umbrella valves that deliver precise and reliable one-way performance for packaging equilibrium.

2. Comprehensive OEM Customization: We offer complete design collaboration to tailor the valve’s geometry, durometer (hardness), and cracking pressure to your specific application, ensuring perfect integration with your container or system.

3. Efficient, Transparent Project Management: Our process from prototyping to mass production is streamlined with clear communication, ensuring your project meets timelines and specifications without unexpected delays.

4. Trusted, Certified Quality Control: Our ISO 9001-certified system, combined with 100% functional testing and raw material traceability, guarantees that every valve meets the highest standards for safety, durability, and performance.

Our Factory

Our specialized manufacturing facility is equipped with CNC machining centers, Mirror EDM, and precision grinding tools to produce high-tolerance molds. We operate dedicated LSR injection molding machines within a controlled environment for consistent, high-volume production. Our quality assurance is rigorous, utilizing 3D optical projectors for dimensional analysis and custom-built pneumatic testers for functional validation. As an ISO 9001 and IATF 16949 certified manufacturer, our integrated and automated production lines ensure the delivery of premium-quality silicone umbrella valves.
