In the rapidly advancing world of electronics, where devices are becoming more compact, efficient, and integrated into our daily lives, material selection plays a pivotal role in ensuring that these devices perform reliably under a wide range of conditions. At Silfusion, we specialize in providing high-quality silicone components that offer exceptional heat resistance, electrical insulation, and mechanical flexibility for various electronics applications.
Silicone has long been a material of choice in the electronics industry due to its outstanding performance in extreme environments. Whether it’s protecting delicate circuit boards from moisture, dissipating heat from high-powered chips, or insulating high-voltage components, silicone components are integral to the functionality and longevity of electronic devices. In this blog, we’ll explore why silicone is essential for electronics, particularly its heat resistance and electrical insulation performance, and how Silfusion ensures that our products meet the highest industry standards.
Why Is Silicone Used in Electronics?
Silicone is not just a versatile material; it’s a material that thrives in the demanding world of electronics. Known for its thermal stability, electrical insulation, and durability, silicone remains stable over long periods—even under stress, heat, or humidity. But what exactly makes it the go-to material for electronic components?
Key Reasons Why Silicone Is Ideal for Electronics:
- Biocompatibility: Silicone is non-toxic, hypoallergenic, and biocompatible, making it perfect for use in medical electronics and wearable devices.
- Wide Temperature Range: Silicone remains stable in temperatures ranging from −50°C to over 330°C, offering versatility for both low- and high-temperature applications.
- Electrical Insulation: With high dielectric strength and resistivity, silicone prevents electrical leakage and short circuits, making it an ideal insulating material.
- Moisture & UV Resistance: Silicone’s natural resistance to water, sunlight, and ozone ensures it remains durable in outdoor or harsh-environment electronics.
- Mechanical Flexibility: It is flexible, compressible, and elastic, absorbing shock and sealing complex surfaces, ideal for electronic components that need to withstand vibrations or impacts.
- Chemical Inertness: Silicone resists acids, solvents, and other chemicals, helping to maintain performance in industrial, automotive, and other environments with exposure to harsh chemicals.
Thanks to this combination of properties, silicone is widely used in electronics not just as a protective cover but also as a thermal interface, encapsulant, and insulator.
Types of Silicone Used in Electronics
Silicone is a versatile material, existing in multiple forms, each serving specific purposes in electronics manufacturing. At Silfusion, we work with various types of silicone, each tailored to meet the precise needs of our clients:
- Silicone Rubber: Ideal for gaskets, buttons, vibration dampers, and keyboard membranes. It maintains elasticity at both high and low temperatures and is non-conductive and weather-resistant.

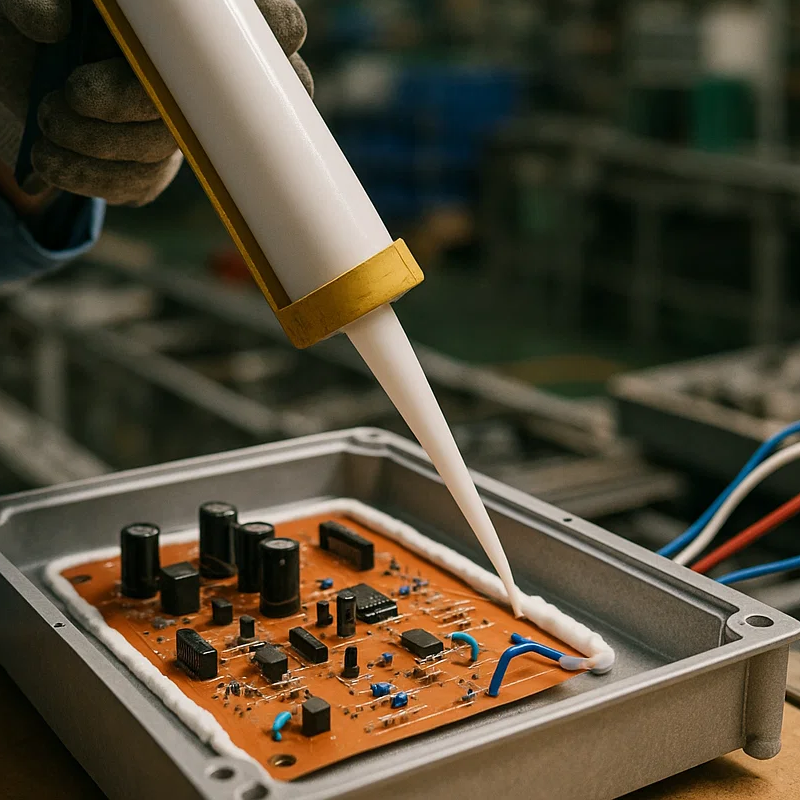

- Silicone Adhesives and Sealants: Used to bond and seal components and housings. They offer excellent gap-filling abilities and chemical resistance, making them common in consumer electronics and automotive applications.
- Silicone Gels and Encapsulants: These are used to protect sensitive components like ICs, transformers, and sensor modules. They maintain flexibility, resist cracking, and offer excellent dielectric properties.
- Silicone Greases and Thermal Pastes: Essential for improving heat transfer between chips and heat sinks, these materials are thermally conductive and electrically insulating. Commonly used in CPUs, LEDs, and power transistors.

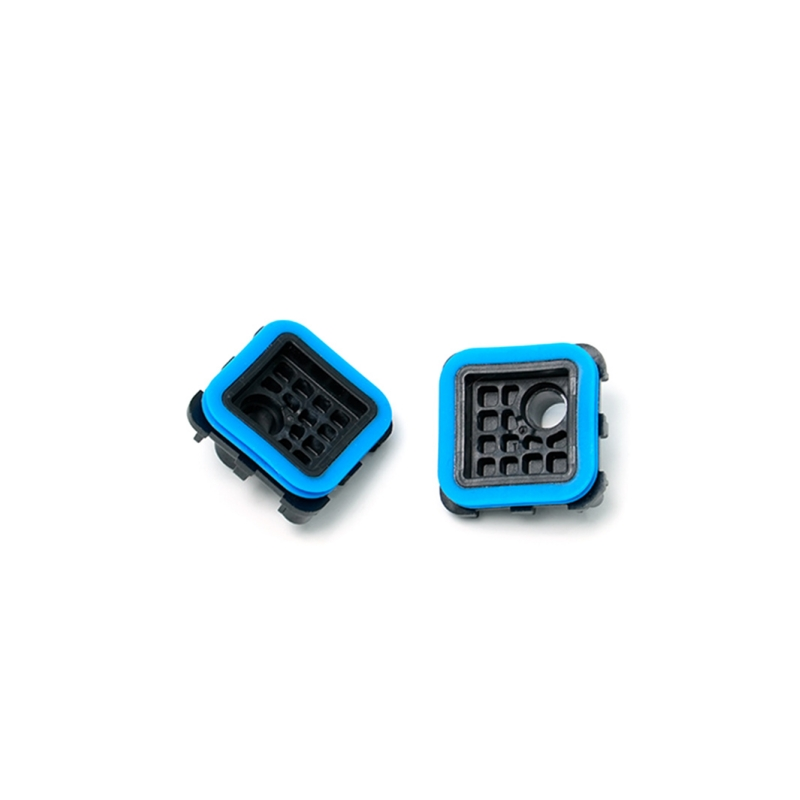

- Liquid Silicone Rubber (LSR): Injected into molds for precision parts. LSR is ideal for high-volume production of seals, connector housings, and sensor grommets.
These materials enable silicone to be integrated seamlessly at various stages of the design and assembly process, from mechanical protection to thermal management.
Heat Resistance of Silicone in Electronics
One of the standout features of silicone in electronics is its exceptional heat resistance, a key attribute in electronics that generate significant heat, such as processors, power transistors, and high-power chips.
Why Heat Resistance Matters:
- Heat Generation: High-performance electronic components like processors or power chips generate significant heat that must be managed to ensure long-term reliability.
- Harsh Environments: Devices such as automotive electronics or power systems often operate in high-temperature environments, where materials need to withstand constant exposure to heat without degrading.
- Thermal Fatigue: Repeated heating and cooling cycles can cause materials to fatigue, so selecting materials with low thermal expansion is critical for maintaining performance over time.
Silicone’s Advantages for Heat Resistance:
- Temperature Stability: Silicone can maintain its stability up to 230–330°C (some specialty grades can withstand even higher temperatures) without degrading.
- Retains Elasticity: Even at high temperatures, silicone maintains its elasticity and shape, ensuring long-term performance without cracking or becoming brittle.
- Low Thermal Expansion: Silicone’s low coefficient of thermal expansion means it won’t warp or deform under heat, making it ideal for sensitive components.
- Non-Melting: Unlike thermoplastics, silicone doesn’t melt at high temperatures, making it a reliable choice for high-heat applications.
Applications of Silicone for Heat Resistance:
- Thermal Interface Materials (TIMs): Between processors and heat sinks, silicone helps manage the heat dissipation.
- Potting Compounds: Used in power supplies and inverters to protect sensitive components from heat and environmental factors.
- Heat Shields: Silicone is used in automotive electronics and aerospace to create heat shields and thermal barriers that protect critical components.
Electrical Insulation Performance of Silicone
In addition to its heat resistance, silicone is highly regarded for its excellent electrical insulation properties, making it ideal for protecting sensitive electronic components from electrical damage.
Key Electrical Properties of Silicone:
- Dielectric Strength: 20–30 kV/mm (depending on grade and thickness), which ensures high insulation effectiveness.
- Volume Resistivity: >10^14 Ω·cm, offering superior resistance to electrical flow.
- Low Dielectric Constant: Silicone’s electrical properties remain stable over a wide range of frequencies and temperatures, making it a reliable insulator in various conditions.
Applications of Silicone for Electrical Insulation:
- PCB Conformal Coatings: Silicone is used to protect printed circuit boards from environmental factors like moisture, dust, and chemicals.

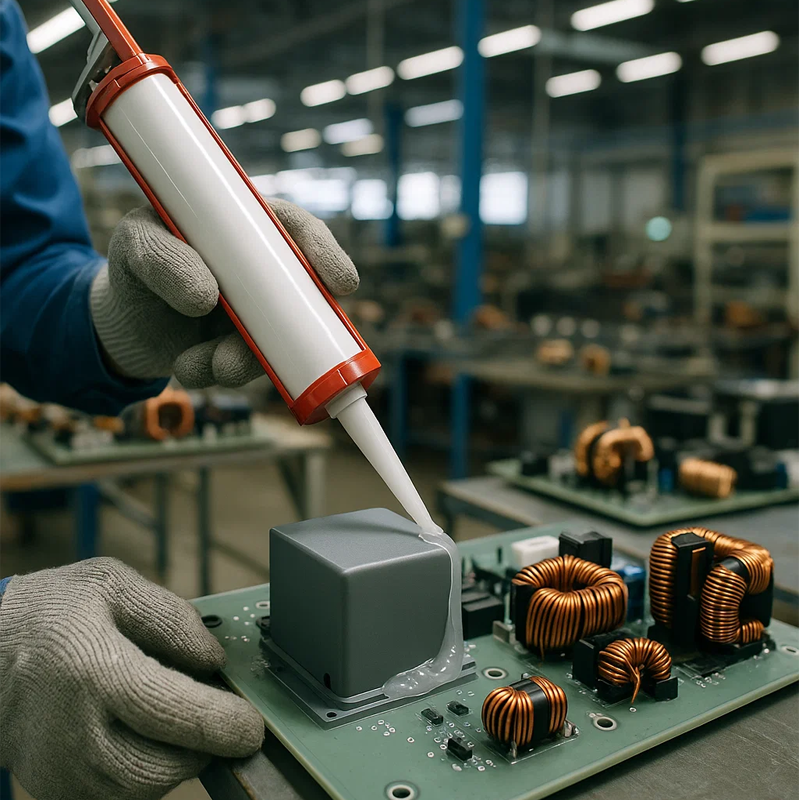

- Insulating High-Voltage Components: Silicone is used in power components, capacitors, and transformers to prevent short circuits and arcing.
- Encapsulating Sensors and Wiring: Silicone protects sensitive electronic parts from damage due to electrical surges or environmental conditions.
Even in challenging environments where components are exposed to condensation, dirt, or mechanical abrasion, silicone maintains its insulating properties, ensuring that devices operate safely and reliably.
Common Applications of Silicone in Electronics
The versatility of silicone allows it to be used across various industries and devices, including:

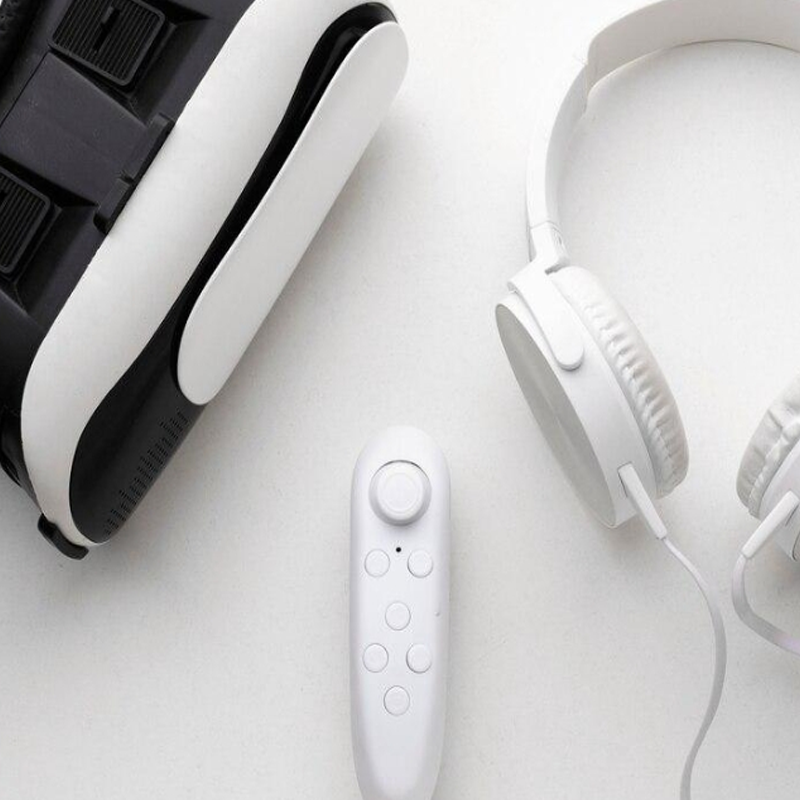

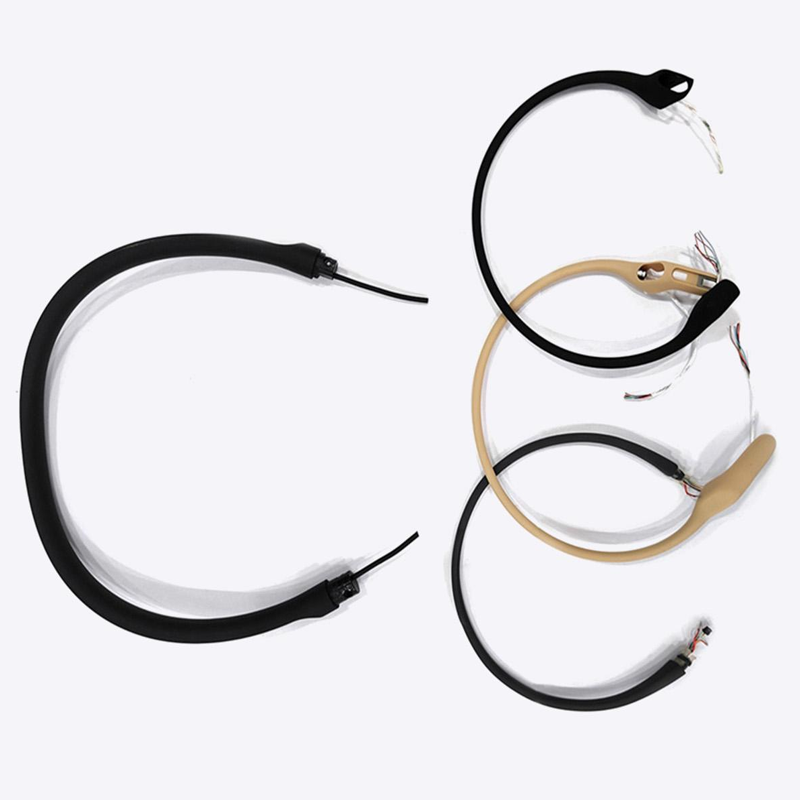

- Consumer Electronics: Gaskets for smartphones, watch straps for wearables, seals for smart speakers, and touch buttons for mobile devices.
- LED Lighting: Silicone lenses for optical clarity, heat-resistant materials for LED drivers, and thermal interface pads to manage heat dissipation.
- Automotive Electronics: Seals for EV batteries, fire-blocking silicone foam, under-hood sensors, and silicone hoses for high-temperature areas.
- Medical Electronics: Biocompatible silicone insulators for implants, wearable biosensors, and patient monitoring devices.
- Industrial and Power Systems: Encapsulation for circuit protection, high-voltage insulators, and protection for outdoor enclosures in power systems.
Silicone vs. Other Materials: Why Silicone Stands Out
When comparing silicone to other common materials like epoxy, thermoplastics, or polyurethane, silicone consistently outperforms in key areas such as heat resistance, electrical insulation, and longevity.
| Property | Silicone | Epoxy | Thermoplastics |
|---|---|---|---|
| Max Temperature | ~230–330°C | ~150°C | ~80–120°C |
| Electrical Insulation | Excellent | Excellent | Moderate |
| Flexibility | High | Brittle | Low–Moderate |
| Moisture Resistance | Excellent | Low–Moderate | Moderate |
| UV/Ozone Resistance | Excellent | Poor | Poor |
| Aging & Longevity | 20+ years | 5–10 years | <10 years |
Choosing the Right Silicone for Your Application
Selecting the appropriate silicone compound for your electronic device depends on several factors, including the thermal requirements, electrical properties, mechanical conditions, and environmental exposure. Whether you need heat resistance, electrical insulation, or chemical inertness, Silfusion offers custom silicone solutions to meet your precise needs.
Conclusion:
Silicone components have become an integral part of modern electronics. Their unique combination of heat resistance, electrical insulation, moisture protection, and mechanical flexibility makes them the ideal choice for a wide range of electronic applications. At Silfusion, we specialize in providing custom silicone solutions that meet the highest standards of quality and performance.
If you’re designing the next generation of electronic products or looking for a reliable partner to optimize your electronics manufacturing process, Silfusion is here to help. Contact us today to discuss how our silicone solutions can enhance the performance and durability of your products.
